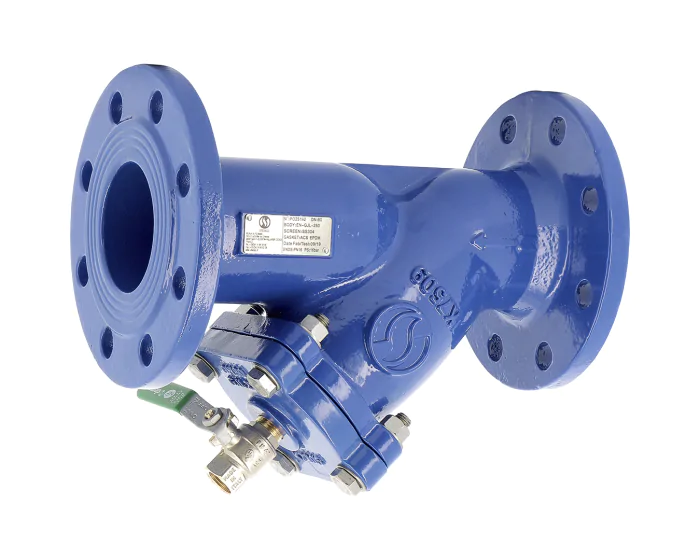

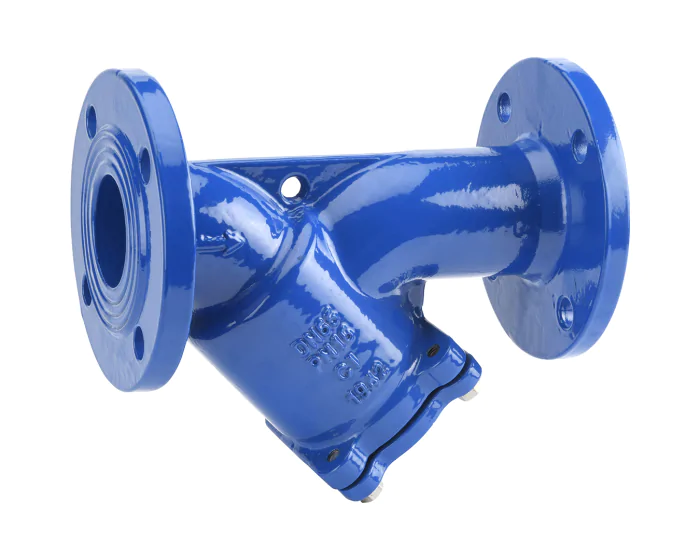

The 233 series Y-strainer is made of GGG25 cast iron body up to DN300, GGG50 ductile iron body above, flanges RF PN10/16, stainless steel screen, draining cap and blue epoxy paint. It is suitable for water use (ACS and PZH certified).
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| DN metric | 40/49 |
| Bonnet material | Cast iron EN GJL-250 |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| Paint coating thickness (µm) | 150.00 |
| EN face-to-face standard | EN 558 series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202-1 F1. NF 29354 |
| Flange type | RF |
| Accessories for flanges | Stainless steel AISI 304 |
| Draining valve | No |
| Application | Water supply and distribution network |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 200.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Gasket | EPDM |
| Body material | Ductile iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 5005 |
| Screen (mesh) | 10/10° |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Main product colour | Blue |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron DN40 - 1''1/2 Flanged PN10/16 No | 233040 | S1011250 |
€49.03
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN50 - 2'' Flanged PN10/16 No | 233050 | S1011251 |
€65.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN50 - 2'' Flanged PN10/16 Yes | 233053 | S1011252 |
€67.93
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN65 - 2''1/2 Flanged PN10/16 Yes | 233063 | S1011253 |
€96.40
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN65 - 2''1/2 Flanged PN10/16 No | 233065 | S1011254 |
€91.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN10/16 No | 233080 | S1011255 |
€114.40
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN10/16 Yes | 233083 | S1011256 |
€119.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN10/16 No | 233100 | S1011257 |
€171.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN10/16 Yes | 233103 | S1011258 |
€175.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN125 - 5'' Flanged PN10/16 Yes | 233123 | S1011259 |
€229.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN125 - 5'' Flanged PN10/16 No | 233125 | S1011260 |
€224.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 No | 233150 | S1011261 |
€316.40
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 Yes | 233153 | S1011262 |
€321.30
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN10 No | 233200 | S1011263 |
€571.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN16 No | 233201 | S1011264 |
€571.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN10 Yes | 233203 | S1011265 |
€577.43
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN250 - 10'' Flanged PN10 No | 233250 | S1011266 |
€857.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN250 - 10'' Flanged PN16 No | 233251 | S1011267 |
€857.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN250 - 10'' Flanged PN10 Yes | 233253 | S1011268 |
€862.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN300 - 12'' Flanged PN10 No | 233300 | S1011269 |
€1,225.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN300 - 12'' Flanged PN16 No | 233301 | S1011270 |
€1,225.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN300 - 12'' Flanged PN10 Yes | 233303 | S1011271 |
€1,230.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN300 - 12'' Flanged PN16 Yes | 233304 | S1011272 |
€1,230.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN350 - 14'' Flanged PN10 No | 233350 | S1011273 |
€1,834.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN400 - 16'' Flanged PN10 No | 233400 | S1011274 |
€1,967.14
(excl. btw)
|
add to cart |
